📦 Mini Dropbox — Cloud File Storage on AWS
A fully functional cloud file storage platform built on AWS — mimicking core Dropbox features including file upload, download, delete, and shareable links with Google OAuth authentication.
App URL:
https://dzn1pcqz3oqep.cloudfront.net/files/Status: Not Live on AWS EC2 (ap-south-1 · Mumbai)
📸 Screenshots
All build screenshots are available in the
/imagesfolder, numbered1through45in chronological build order.

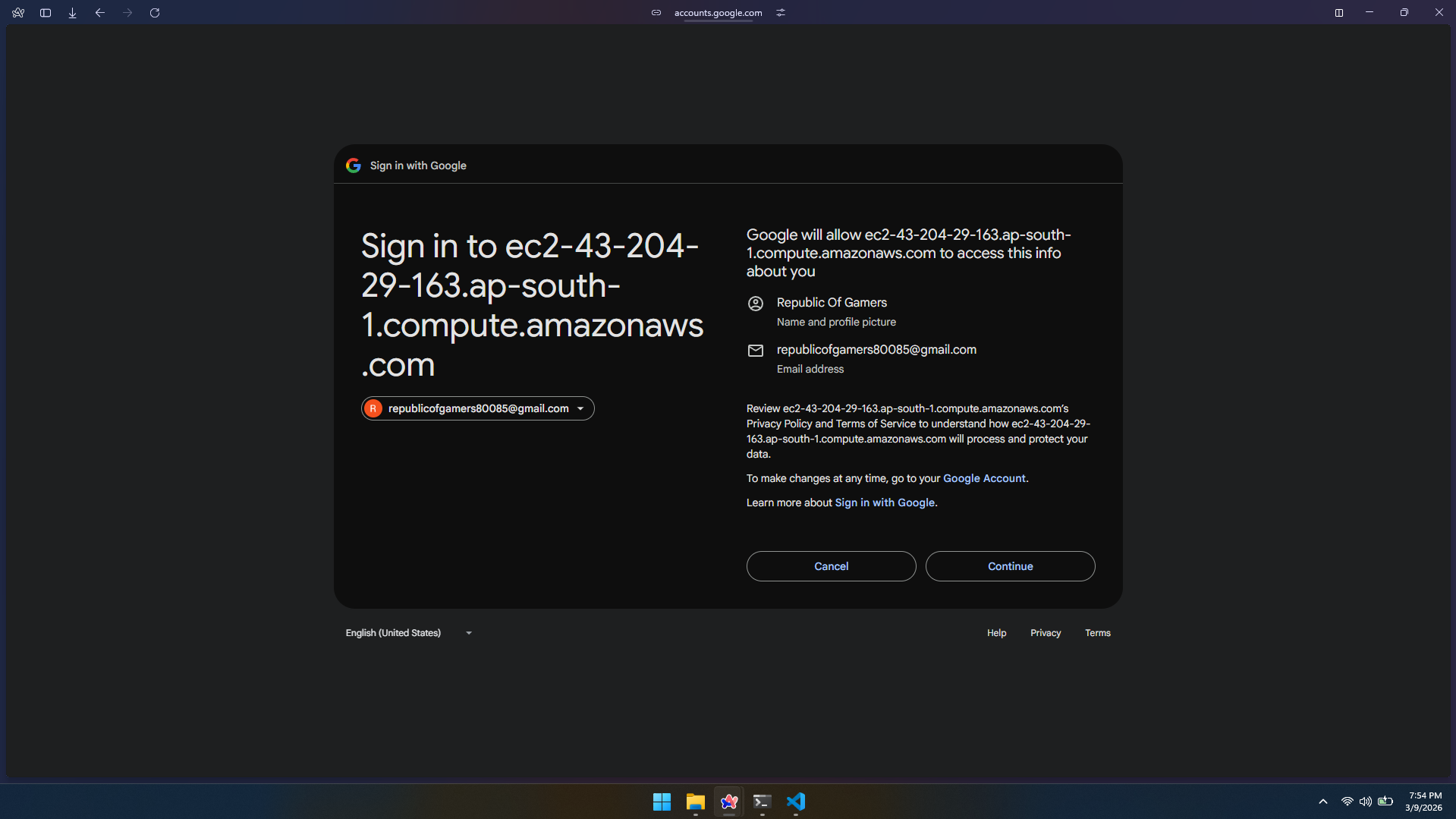

Login Page

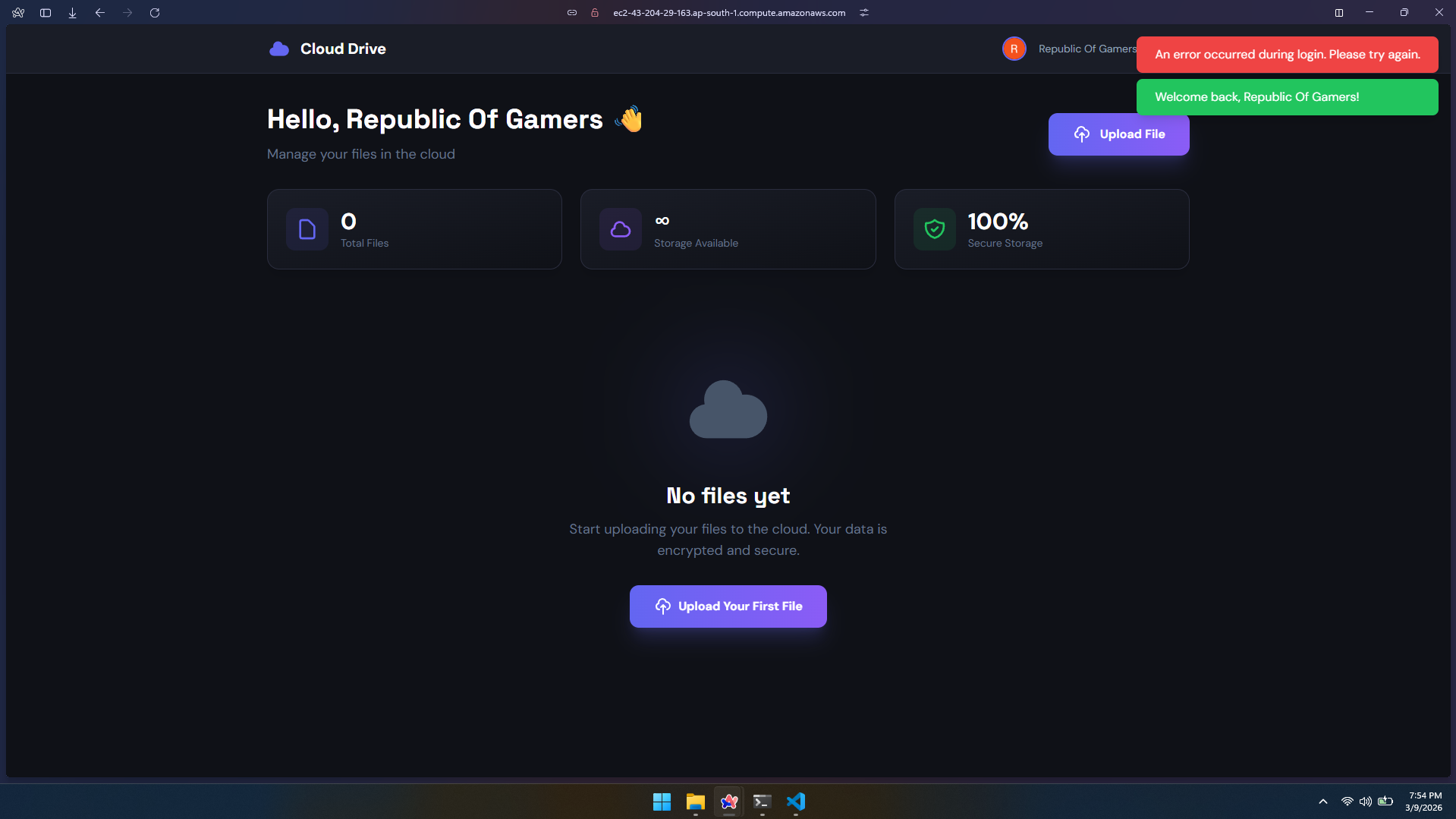

Dashboard

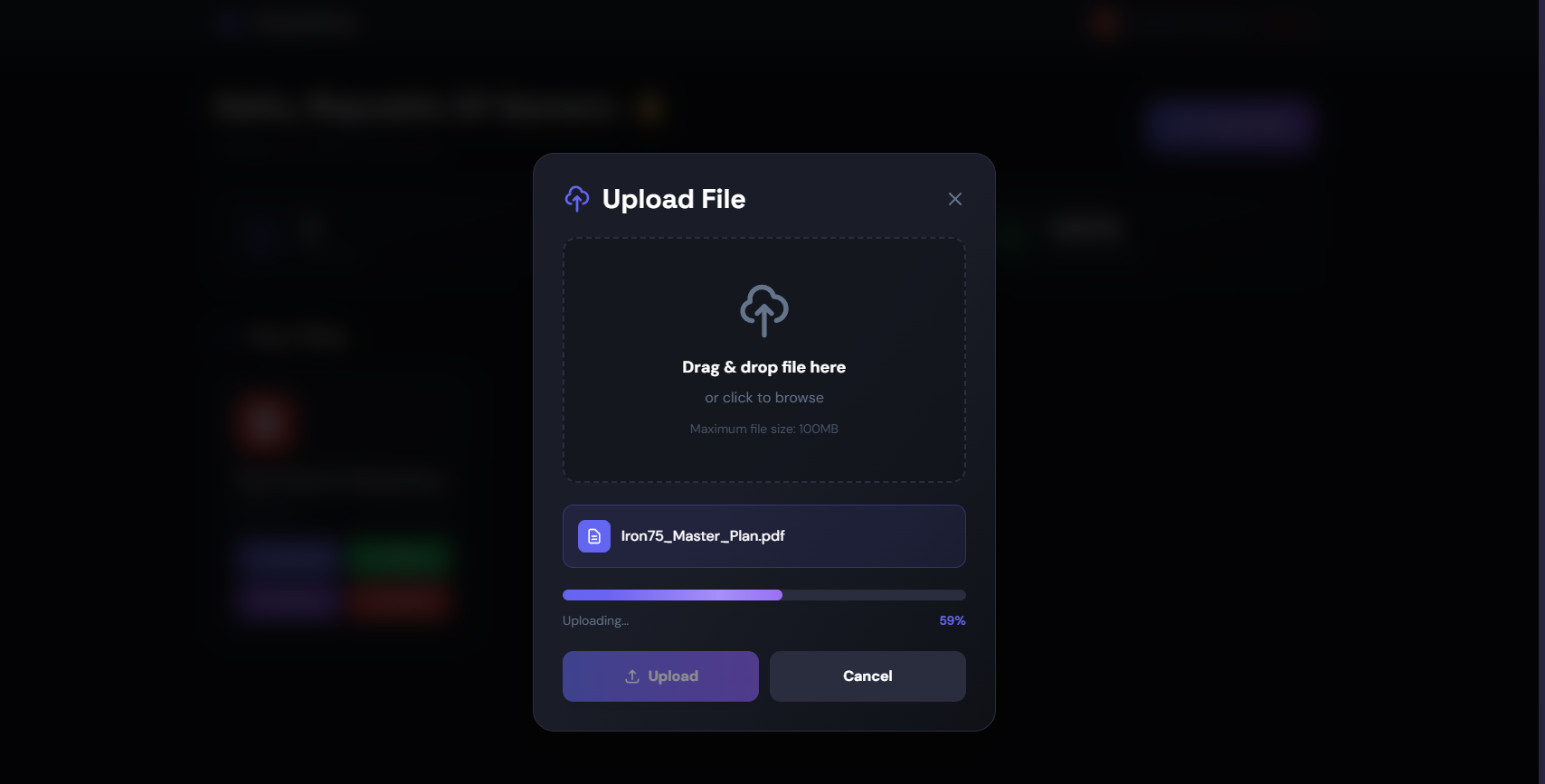

File upload

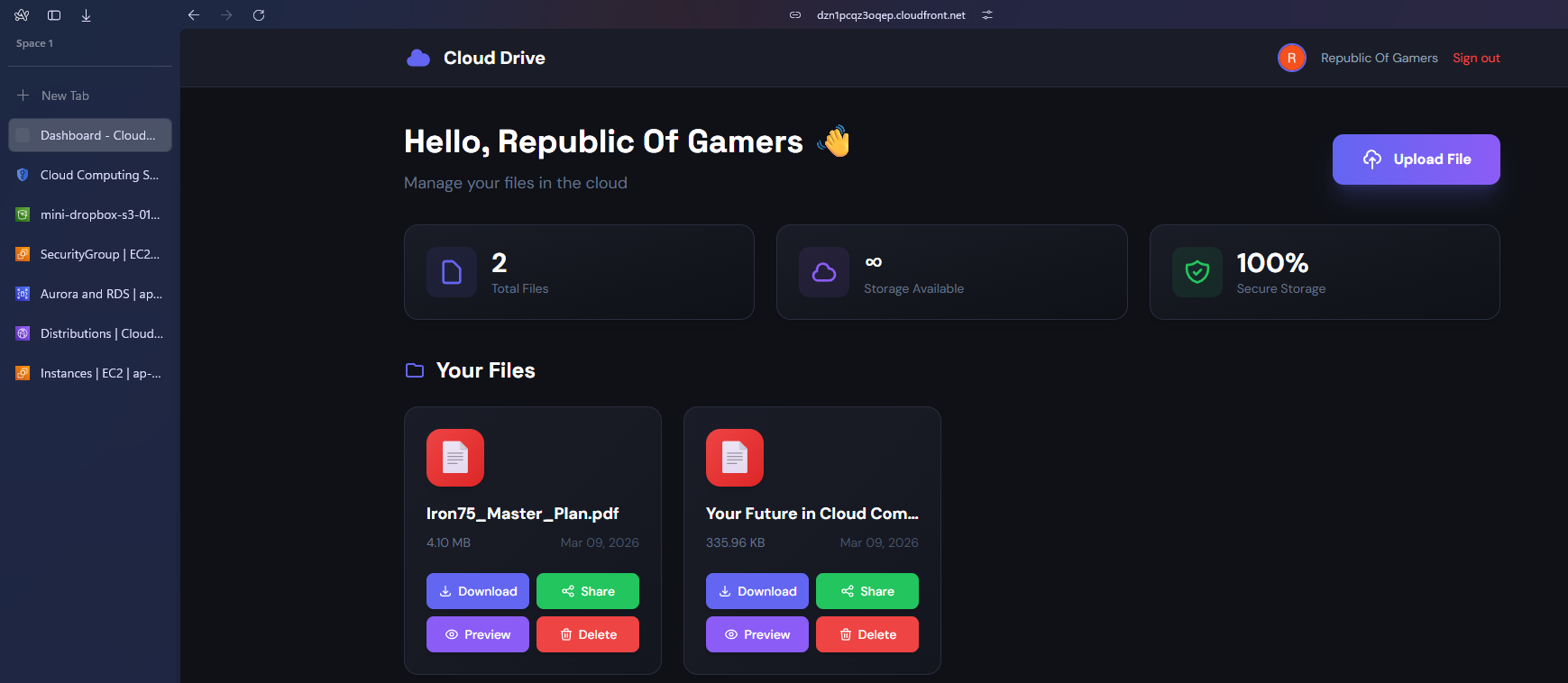

Dashboard view with files

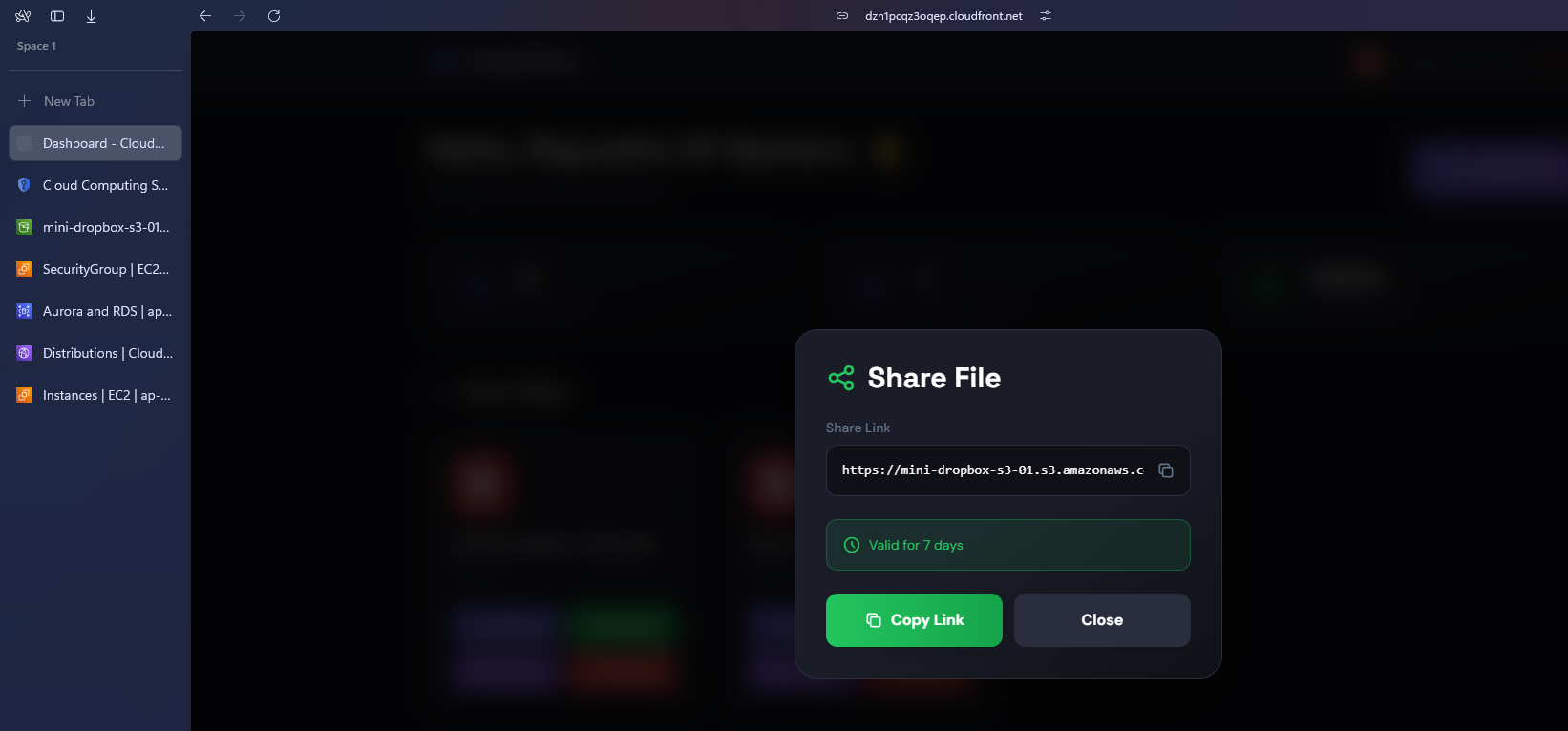

Share link

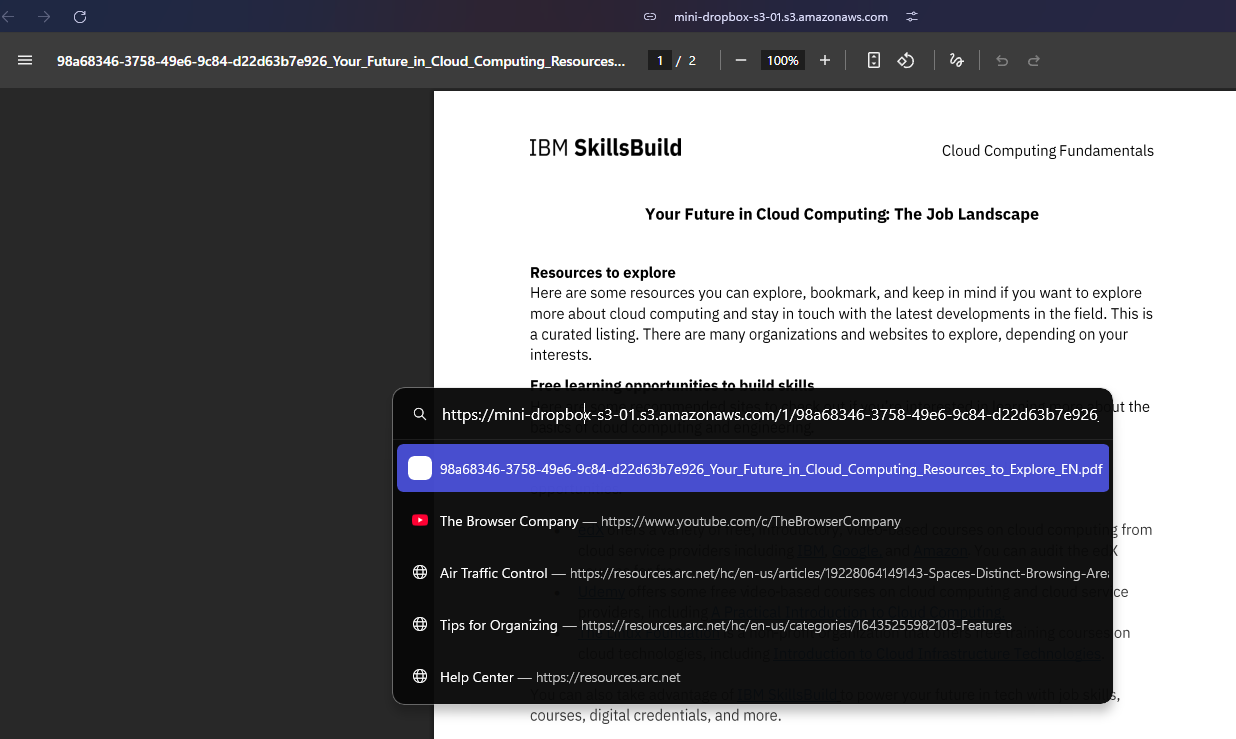

Preview Link Fron mini-dropbox
🧰 Tech Stack
| Layer | Technology |
|---|---|
| Backend | Python 3.11 + Flask |
| Frontend | HTML5 + Tailwind CSS + Vanilla JS |
| Auth | Google OAuth 2.0 (Authlib) |
| File Storage | AWS S3 |
| Database | AWS RDS PostgreSQL 16 |
| CDN | AWS CloudFront |
| Web Server | Nginx + Gunicorn |
| Compute | AWS EC2 (Ubuntu 22.04) |
| Monitoring | AWS CloudWatch |
☁️ AWS Architecture
┌─────────────────────────────────────────────────────────────────────┐
│ INTERNET │
└───────────────────────────┬─────────────────────────────────────────┘
│
│ HTTPS / HTTP
▼
┌─────────────────────────────────────────────────────────────────────┐
│ AWS CLOUD (ap-south-1 · Mumbai) │
│ │
│ ┌──────────────────────────────────────────────────────────────┐ │
│ │ DEFAULT VPC │ │
│ │ │ │
│ │ ┌──────────────────────┐ │ │
│ │ │ CloudFront (CDN) │ ◄── Static files & previews │ │
│ │ │ (Global Edge Cache) │ served globally │ │
│ │ └──────────┬───────────┘ │ │
│ │ │ │ │
│ │ │ Origin request │ │
│ │ ▼ │ │
│ │ ┌──────────────────────────────────────────────────────┐ │ │
│ │ │ EC2 (t2.micro · Ubuntu 22.04) │ │ │
│ │ │ Security Group: mini-dropbox-ec2-sg │ │ │
│ │ │ Ports: 22 (SSH) · 80 (HTTP) · 5000 │ │ │
│ │ │ │ │ │
│ │ │ ┌─────────────┐ ┌─────────────────────────┐ │ │ │
│ │ │ │ Nginx │──────►│ Gunicorn (WSGI) │ │ │ │
│ │ │ │ (Port 80) │ │ 2 workers · Port 5000 │ │ │ │
│ │ │ │ Rev. Proxy │ └──────────┬──────────────┘ │ │ │
│ │ │ └─────────────┘ │ │ │ │
│ │ │ ▼ │ │ │
│ │ │ ┌───────────────────────┐ │ │ |
│ │ │ │ Flask Application │ │ │ |
│ │ │ │ ┌─────────────────┐ │ │ │ |
│ │ │ │ │ auth.py │ │ │ │ |
│ │ │ │ │ Google OAuth │ │ │ │ |
│ │ │ │ └─────────────────┘ │ │ │ |
│ │ │ │ ┌─────────────────┐ │ │ │ |
│ │ │ │ │ files.py │ │ │ │ |
│ │ │ │ │ upload/delete │ │ │ │ |
│ │ │ │ │ share/preview │ │ │ │ |
│ │ │ │ └─────────────────┘ │ │ │ |
│ │ │ │ ┌─────────────────┐ │ │ │ |
│ │ │ │ │ s3.py + db.py │ │ │ │ |
│ │ │ │ └─────────────────┘ │ │ │ |
│ │ │ └──────┬──────────┬──────┘ │ │ |
│ │ │ IAM Role attached │ │ │ │ |
│ │ │ (No hardcoded keys) │ │ │ │ |
│ │ └───────────────────────────────┼──────────┼───────────┘ │ |
│ │ │ │ | │
│ │ ┌────────────────────┘ └──────────────┐| |
│ │ | |
│ │ │ S3 API (boto3) psycopg2 :5432 │ │
│ │ ▼ ▼ │
│ │ ┌─────────────────────┐ ┌──────────────────────────┐ │
│ │ │ AWS S3 │ │ RDS PostgreSQL 16 │ │
│ │ │ mini-dropbox-files │ │ mini-dropbox-db │ │
│ │ │ │ │ (db.t3.micro) │ │
│ │ │ ┌───────────────┐ │ │ SG: rds-sg │ │
│ │ │ │ user_id/uuid_ │ │ │ (only EC2 SG allowed) │ │
│ │ │ │ filename.ext │ │ │ │ │
│ │ │ │ (private) │ │ │ ┌──────────────────┐ │ │
│ │ │ └───────────────┘ │ │ │ users table │ │ │
│ │ │ │ │ │ files table │ │ │
│ │ │ Access via: │ │ └──────────────────┘ │ │
│ │ │ Pre-signed URLs │ └──────────────────────────┘ │
│ │ │ (15min download) │ │ │
│ │ │ (7day share link) │ │ │
│ │ └─────────────────────┘ │ │
│ │ │ │
│ └──────────────────────────────────────────────────────────────┘ │
│ │
│ ┌──────────────┐ ┌──────────────┐ ┌──────────────────────┐ │
│ │ IAM │ │ CloudWatch │ │ Google OAuth │ │
│ │ EC2 Role │ │ Monitoring │ │ (External · HTTPS) │ │
│ │ S3 Access │ │ Logs+Alarms │ │ email+profile+id │ │
│ └──────────────┘ └──────────────┘ └──────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────┘
Request Flow
Upload File Download / Share
─────────── ────────────────
Browser Browser
│ POST /files/upload │ GET /files/download/<id>
▼ ▼
Nginx → Flask Nginx → Flask
│ secure_filename() │ verify ownership (RDS)
│ generate s3_key │ generate pre-signed URL
▼ ▼
S3 (store file) S3 (generate temp URL)
│ │
▼ ▼
RDS (store metadata) Redirect → Browser downloads
Security Design
Internet
│
│ ✅ HTTP/HTTPS only
▼
EC2 (mini-dropbox-ec2-sg)
│ Port 22 ← Your IP only (SSH)
│ Port 80 ← Anyone (web traffic)
│
│ ✅ IAM Role — no AWS keys in code
│ ✅ Pre-signed URLs — S3 never public
▼
RDS (mini-dropbox-rds-sg)
│ Port 5432 ← EC2 Security Group ONLY
│ (not open to internet)
▼
S3 Bucket
│ Block All Public Access ✅
│ CORS configured ✅
│ SSE-S3 Encryption ✅
✨ Features
| Feature | Description |
|---|---|
| 🔐 Google Sign In | OAuth 2.0 login — no password needed |
| 📤 File Upload | Drag & drop or click to upload, up to 100MB |
| 📋 File Dashboard | View all your files with type, size, and upload date |
| ⬇️ Download | Secure time-limited pre-signed S3 URL (15 min) |
| 🗑️ Delete | Remove file from S3 and metadata from RDS instantly |
| 🔗 Share Link | Generate a 7-day shareable pre-signed URL |
| 👁️ Preview | Open images and PDFs directly in browser via CloudFront |
| 📊 File Icons | Visual icons per file type (PDF, image, video, zip, etc.) |
🗂️ Project Structure
mini-dropbox/
|---CODE
├── app/
│ ├── __init__.py # Flask app factory
│ ├── config.py # Environment config
│ ├── auth.py # Google OAuth routes
│ ├── files.py # Upload, download, delete, share routes
│ ├── db.py # RDS PostgreSQL operations
│ ├── s3.py # S3 operations + pre-signed URLs
│ │
│ ├── templates/
│ │ ├── base.html # Base layout with navbar
│ │ ├── login.html # Google Sign-In page
│ │ └── dashboard.html # File manager UI
│ │
│ └── static/
│ ├── css/style.css # Custom styles
│ └── js/dashboard.js # Upload, delete, share, preview logic
│
├── sql/
│ └── schema.sql # RDS table definitions
│
├── docs/
│ └── screenshots/ # UI screenshots
│
├── .env.example # Environment variable template
├── requirements.txt # Python dependencies
├── run.py # App entry point
├── gunicorn.conf.py # Production server config
└── README.md
🗄️ Database Schema
-- Users (from Google OAuth)
users (id, google_id, email, name, profile_picture, created_at)
-- Files (metadata only — actual files live in S3)
files (id, user_id, filename, original_name, s3_key,
file_size, file_type, uploaded_at, share_token)
🚀 How to Deploy
Prerequisites
- AWS Account with Free Tier
- Google Cloud Console account
- EC2 instance (Ubuntu 22.04, t2.micro)
- RDS PostgreSQL instance (db.t3.micro)
- S3 bucket (private)
1. Clone the repo
git clone https://github.com/ADITYANAIR01/AWS.git
cd mini-dropbox
2. Install dependencies
sudo apt update && sudo apt install -y python3 python3-pip nginx postgresql-client
sudo pip3 install -r requirements.txt
3. Configure environment
cp .env.example .env
nano .env # Fill in all values
4. Initialize database
python3 -c "
from app import create_app
from app.db import init_db
app = create_app()
with app.app_context():
init_db()
"
5. Configure Nginx
sudo nano /etc/nginx/sites-available/mini-dropbox
# Paste nginx config (see docs below)
sudo ln -s /etc/nginx/sites-available/mini-dropbox /etc/nginx/sites-enabled/
sudo systemctl restart nginx
6. Run with Gunicorn
sudo systemctl start mini-dropbox
sudo systemctl enable mini-dropbox
🔧 Environment Variables
# Flask
FLASK_SECRET_KEY=your-secret-key
FLASK_ENV=production
# Google OAuth
GOOGLE_CLIENT_ID=xxxx.apps.googleusercontent.com
GOOGLE_CLIENT_SECRET=GOCSPX-xxxx
GOOGLE_REDIRECT_URI=http://YOUR-EC2-IP/auth/callback
# AWS
AWS_REGION=ap-south-1
S3_BUCKET_NAME=your-bucket-name
CLOUDFRONT_DOMAIN=your-cloudfront-domain.cloudfront.net
# RDS
DB_HOST=your-rds-endpoint.amazonaws.com
DB_PORT=5432
DB_NAME=minidropbox
DB_USER=dbadmin
DB_PASSWORD=your-password
🔐 AWS IAM & Security Design
- IAM Role (
mini-dropbox-ec2-role) attached to EC2 — no AWS keys in code - S3 bucket is fully private — no public access allowed
- Files served via pre-signed URLs with expiry (download: 15 min, share: 7 days)
- RDS has no public access — only reachable from EC2 via Security Group
- Security Groups — RDS SG allows inbound only from EC2 SG (not open to internet)
📡 API Routes
| Method | Route | Description |
|---|---|---|
| GET | /auth/login |
Redirect to Google OAuth |
| GET | /auth/callback |
Handle Google OAuth callback |
| GET | /auth/logout |
Clear session + redirect to login |
| GET | / |
Dashboard — list user's files |
| POST | /files/upload |
Upload file to S3 + save metadata |
| GET | /files/download/<id> |
Generate pre-signed download URL |
| POST | /files/delete/<id> |
Delete from S3 + RDS |
| POST | /files/share/<id> |
Generate 7-day shareable link |
| GET | /files/preview/<id> |
Get CloudFront preview URL |
💡 Cloud Concepts Demonstrated
- Object Storage — S3 as scalable file storage (not server disk)
- Pre-signed URLs — Secure, temporary access to private S3 objects
- CDN — CloudFront for fast global file delivery
- Multi-tier architecture — EC2 (compute) + S3 (storage) + RDS (database) separated
- IAM Roles — EC2 to S3 auth without hardcoded credentials
- Security Groups — Network-level access control between services
- Managed Database — RDS handles backups, patching, availability
- Process Management — Gunicorn + systemd for production reliability
- Reverse Proxy — Nginx routing traffic to Flask app
📊 AWS Services Used
| Service | Purpose | Free Tier |
|---|---|---|
| EC2 t2.micro | App server | 750 hrs/month |
| RDS db.t3.micro | PostgreSQL database | 750 hrs/month |
| S3 | File storage | 5GB storage |
| CloudFront | CDN / file delivery | 1TB transfer/month |
| IAM | Roles & permissions | Always free |
| CloudWatch | Monitoring & logs | 10 metrics free |
| GCP Google Oauth Client | for login with google |
