AWS-PORTFOLIO

PortfolioEdge | Personal Portfolio on AWS

Personal portfolio website hosted on AWS S3 + CloudFront with automated CI/CD via GitHub Actions and a custom domain with HTTPS.

🌐 Live: https://www.adityanair.tech

💡 Portfolio source code is kept in a private repository. The CI/CD pipeline, infrastructure setup, and architecture are fully documented here.

📸 Screenshots

Images are located in the images/ folder.

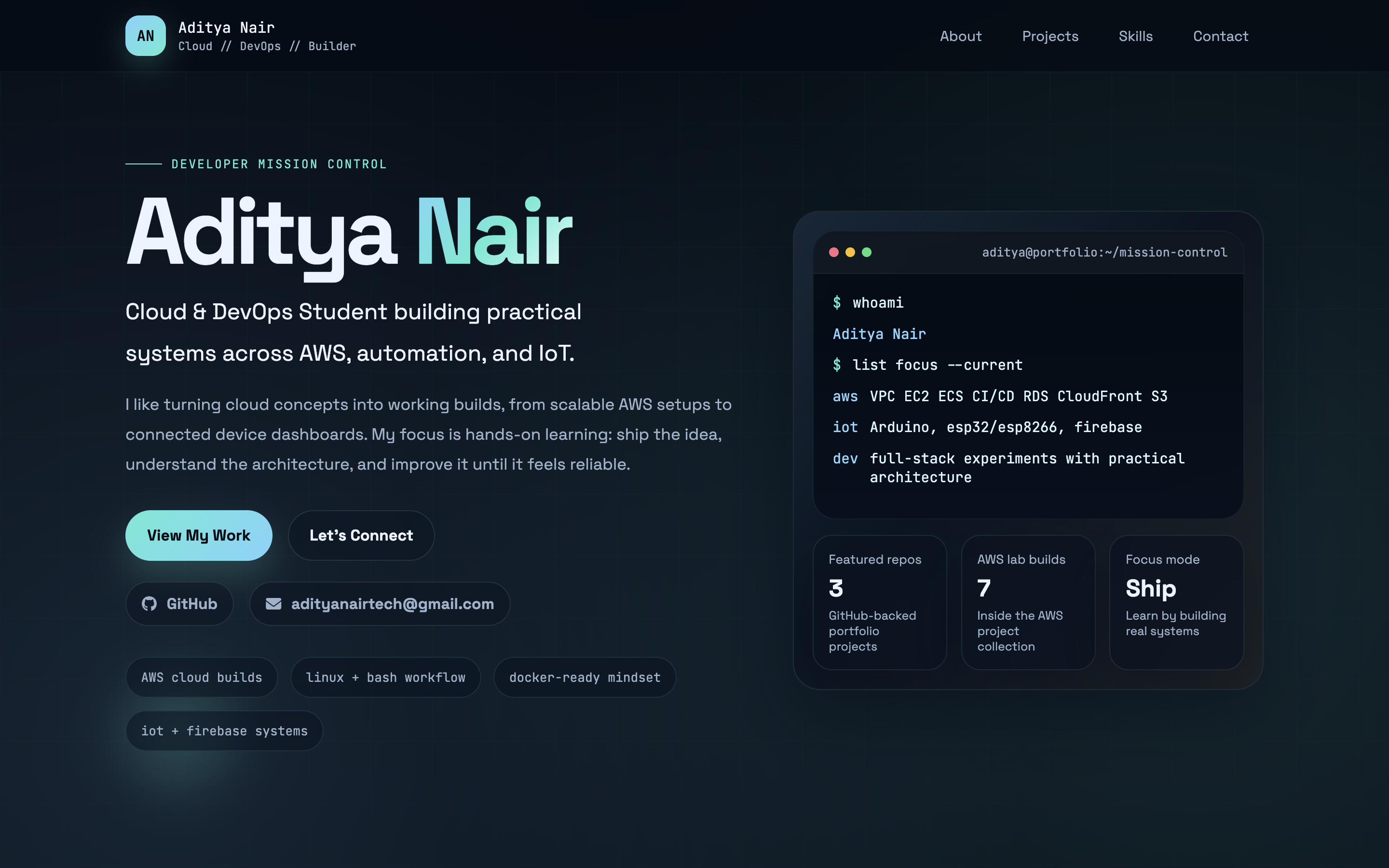

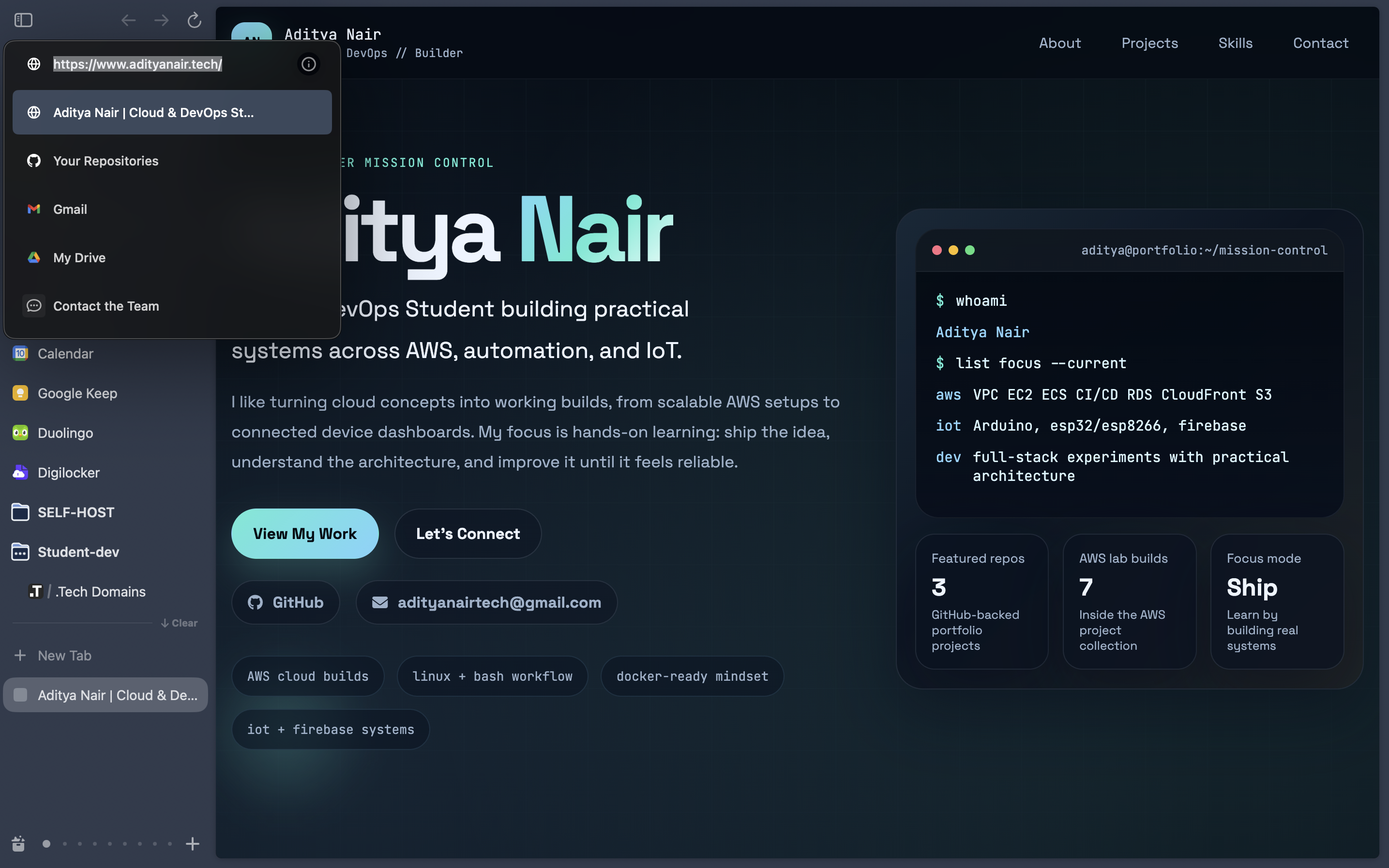

Live Site at Custom Domain

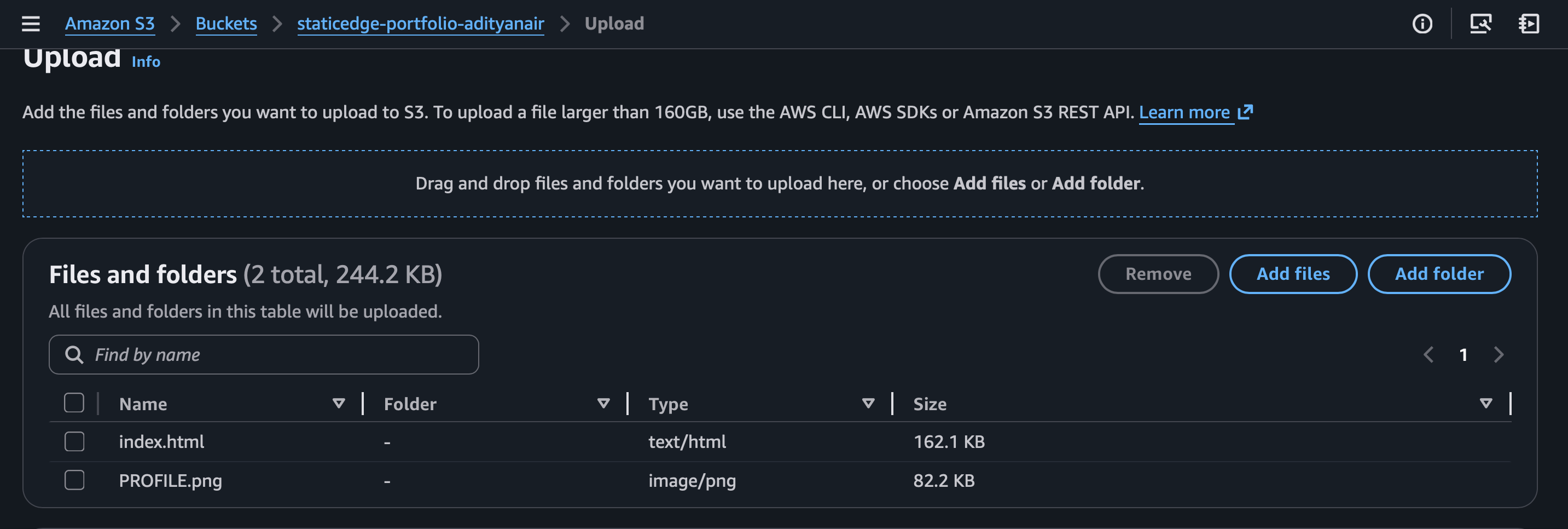

S3 Bucket — Files Uploaded

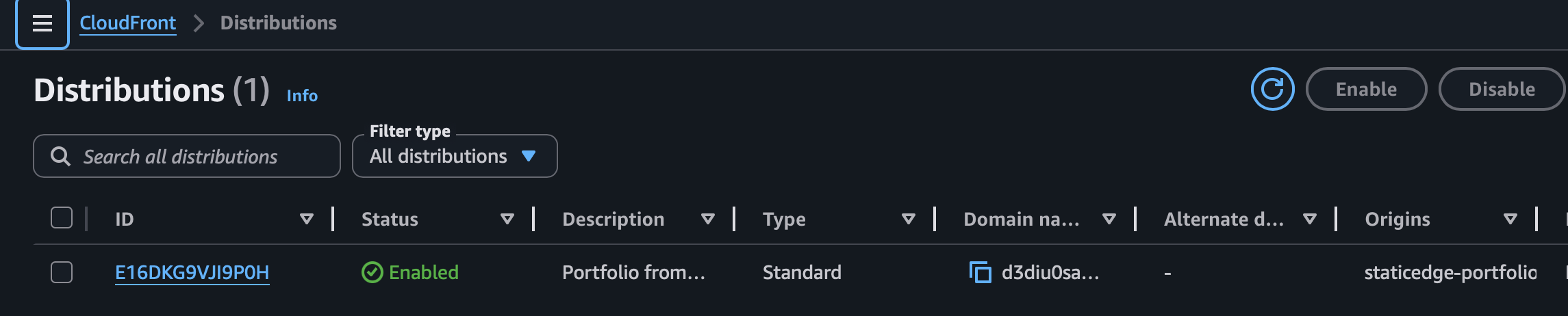

CloudFront Distribution — Enabled

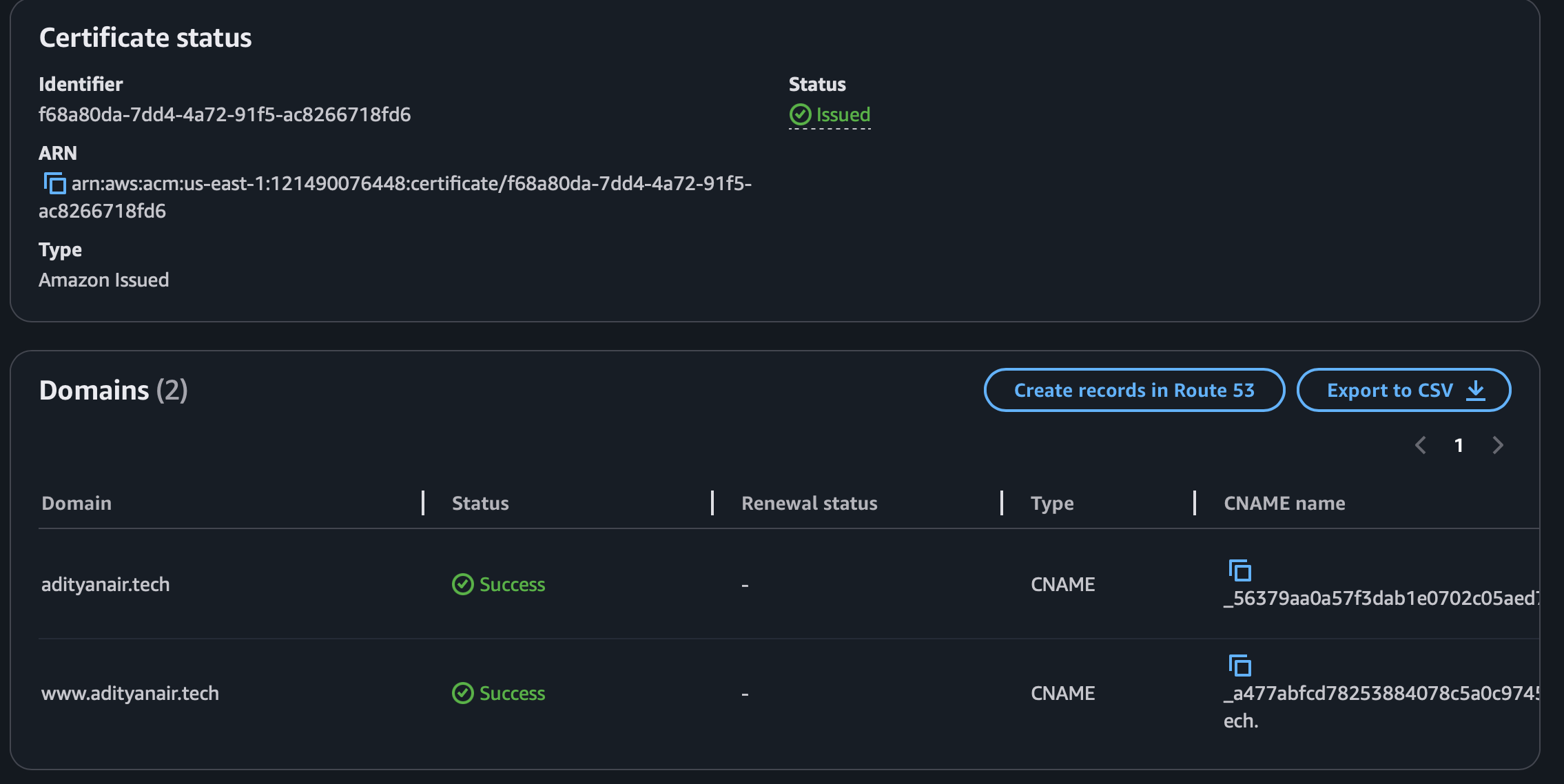

ACM Certificate — Issued

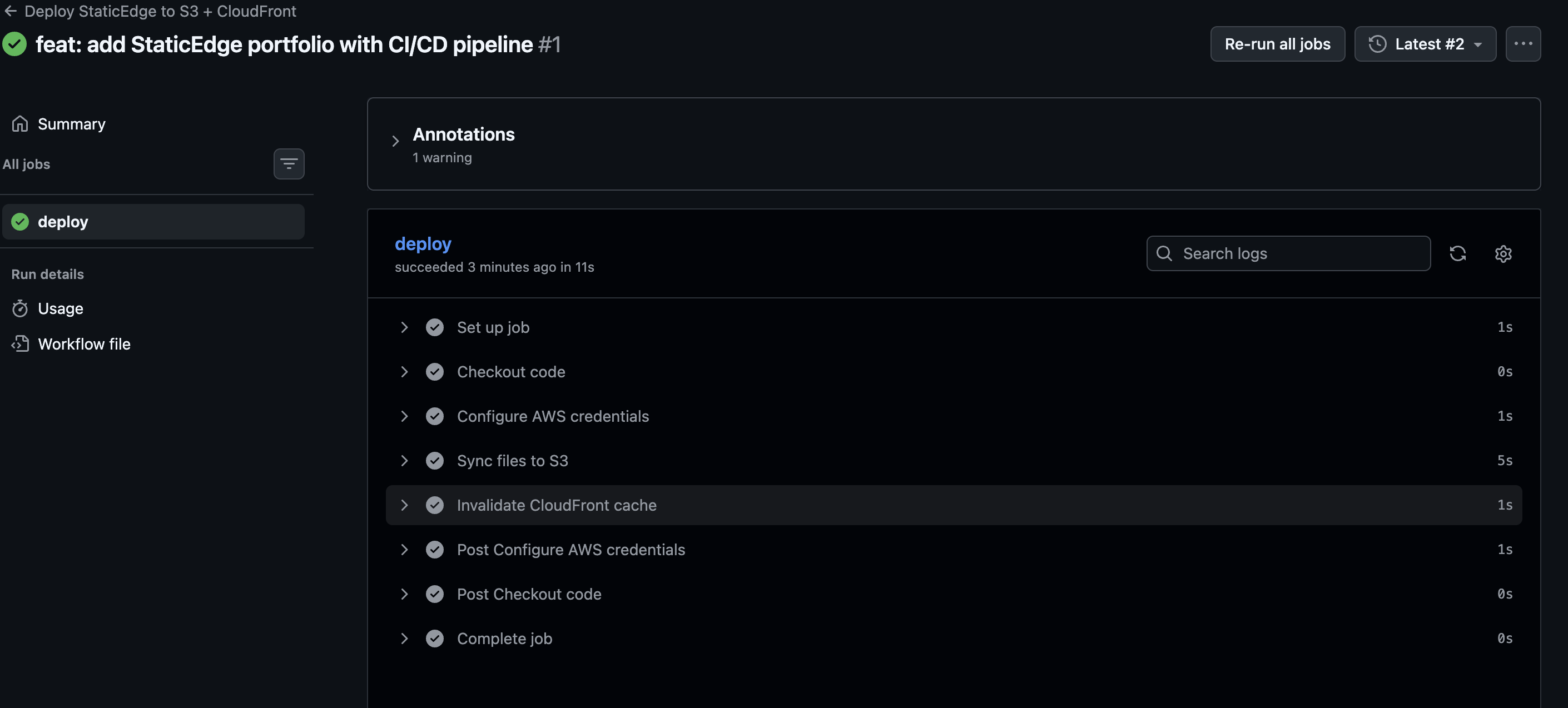

GitHub Actions — Successful Deploy

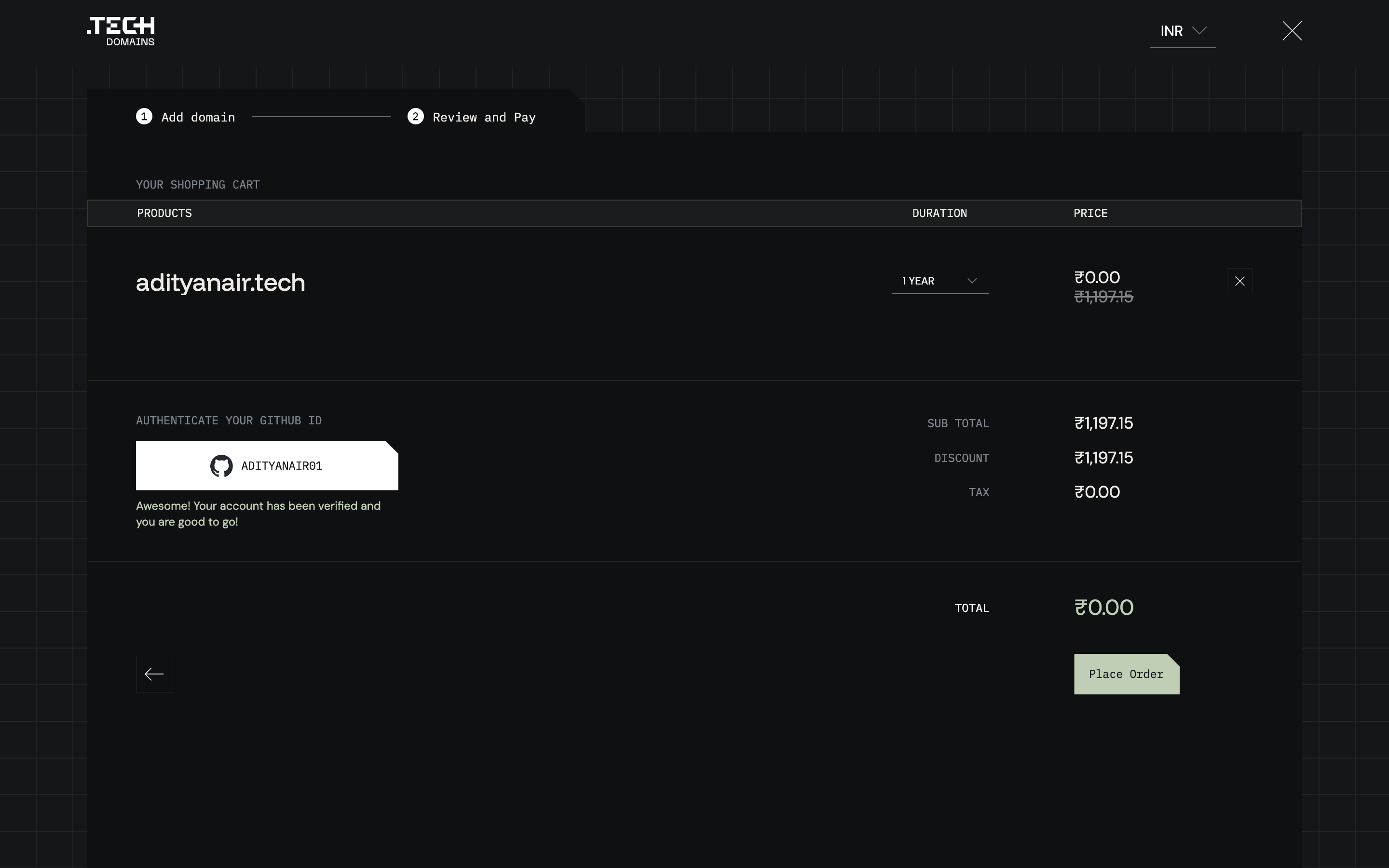

Custom Domain with .tech domain redeemed with Github Education Plan

Architecture

User visits https://adityanair.tech
         |
         ▼
Domain Forwarding at get.tech registrar
(301 redirect to www.adityanair.tech)
         |
         ▼
https://www.adityanair.tech
         |
         ▼
 +-------------------------+
 |  AWS CloudFront (CDN)   |
 |  - Global edge caching  |
 |  - HTTPS via ACM cert   |
 |  - OAC to S3            |
 +-------------------------+
         |
         ▼
 +-------------------------+
 |  AWS S3 (Private Bucket)|
 |  - No public access     |
 |  - OAC policy only      |
 +-------------------------+
         ^
         |
 +---------------------------+
 |  GitHub Actions CI/CD     |
 |  - Triggered on push      |
 |  - S3 sync + CF invalidate|
 +---------------------------+

AWS Services Used

Service	Purpose
Amazon S3	Static file hosting (private bucket)
Amazon CloudFront	CDN, HTTPS termination, global edge caching
AWS ACM	Free SSL/TLS certificate for custom domain
AWS IAM	Scoped credentials for GitHub Actions
GitHub Actions	CI/CD pipeline — auto-deploy on push

Key Cloud Concepts Demonstrated

Private S3 + OAC — Bucket is fully private; CloudFront accesses it via Origin Access Control (OAC), the modern replacement for OAI
CDN edge caching — CloudFront serves cached content from global edge locations for low latency worldwide
HTTPS everywhere — ACM-issued SSL certificate attached to CloudFront; HTTP auto-redirects to HTTPS
Custom domain — .tech domain pointed to CloudFront via CNAME; root domain forwarded to www subdomain
CI/CD pipeline — GitHub Actions automatically syncs S3 and invalidates CloudFront cache on every git push to main
Cache invalidation — /* invalidation ensures visitors always get the latest version after each deploy
Least privilege IAM — GitHub Actions uses a dedicated IAM user with only S3 and CloudFront permissions

CI/CD Pipeline

Every push to main in the private portfolio repo triggers the following workflow:

name: Deploy StaticEdge to S3 + CloudFront

on:
  push:
    branches:
      - main

jobs:
  deploy:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout code
        uses: actions/checkout@v3

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v2
        with:
          aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
          aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          aws-region: ${{ secrets.AWS_REGION }}

      - name: Sync files to S3
        run: |
          aws s3 sync . s3://${{ secrets.S3_BUCKET }} \
            --delete \
            --cache-control "max-age=86400" \
            --exclude ".git/*" \
            --exclude ".github/*" \
            --exclude "README.md"

      - name: Invalidate CloudFront cache
        run: |
          aws cloudfront create-invalidation \
            --distribution-id ${{ secrets.CLOUDFRONT_DISTRIBUTION_ID }} \
            --paths "/*"

Deploy time: ~16 seconds ⚡

Infrastructure Setup

S3 Bucket

Region: ap-south-1 (Mumbai)
Access: Private — all public access blocked
Bucket policy: OAC policy allowing only CloudFront distribution E16DKG9VJI9P0H

CloudFront Distribution

Distribution ID: E16DKG9VJI9P0H
Domain: d3diu0sa9fueaw.cloudfront.net
Alternate domains: adityanair.tech, www.adityanair.tech
Origin access: OAC (Origin Access Control) — recommended method
Viewer protocol: Redirect HTTP → HTTPS
Default root object: index.html
Price class: All edge locations

SSL Certificate (ACM)

Region: us-east-1 (required for CloudFront)
Domains covered: adityanair.tech, www.adityanair.tech
Validation: DNS validation via CNAME records at get.tech

Custom Domain

Registrar: get.tech (via GitHub Education Student Pack — free 1 year)
Root domain: adityanair.tech → forwarded to www.adityanair.tech via Domain Forwarding
www subdomain: CNAME → d3diu0sa9fueaw.cloudfront.net

IAM

User: github-actions-staticedge
Policies: AmazonS3FullAccess, CloudFrontFullAccess
Usage: GitHub Actions secrets (never hardcoded)

GitHub Secrets Required

Secret	Description
`AWS_ACCESS_KEY_ID`	IAM user access key
`AWS_SECRET_ACCESS_KEY`	IAM user secret key
`AWS_REGION`	`ap-south-1`
`S3_BUCKET`	S3 bucket name
`CLOUDFRONT_DISTRIBUTION_ID`	CloudFront distribution ID

Author

Aditya Nair

GitHub: @ADITYANAIR01
Portfolio: https://www.adityanair.tech
